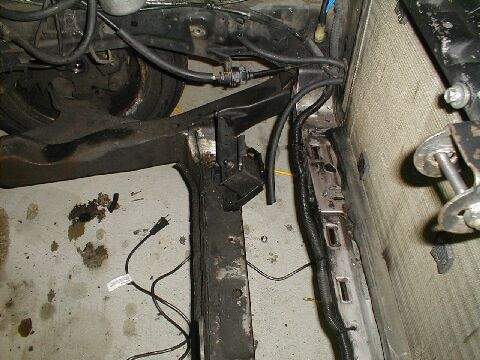

Front Transaxle bracket installed onto front mount
Front

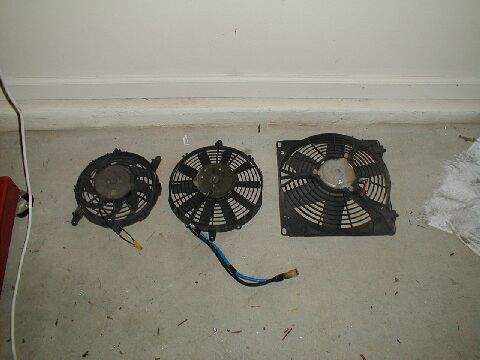

"Pusher" Type Cooling Fans:
With
the 2.8L, I had the 8" fan (far left), then upgraded to a 9" fan (middle)
with the 3.1L
Now,
I will be using the big 10" fan (far right) with the 3800SC conversion.
It
will be programmed to come on with either the Air Conditioner, or EXTENDED
idle periods (Fan Courtesy of 1987 Peugeot 505)

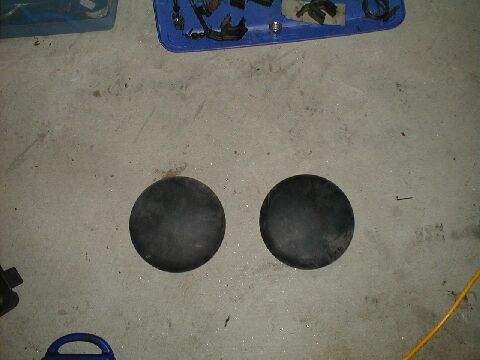

Picked
up these strut tower caps from a 1986 Oldsmobile Ciera

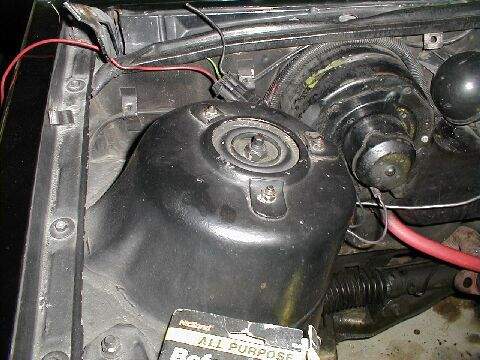

Strut
Tower: BEFORE

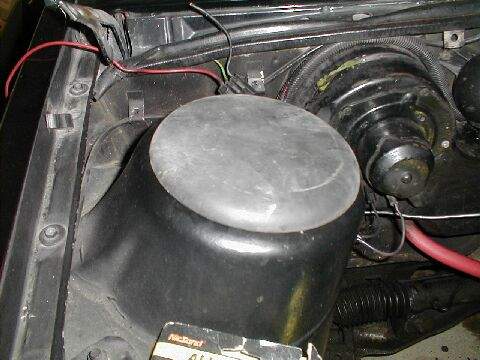

Strut
Tower: AFTER

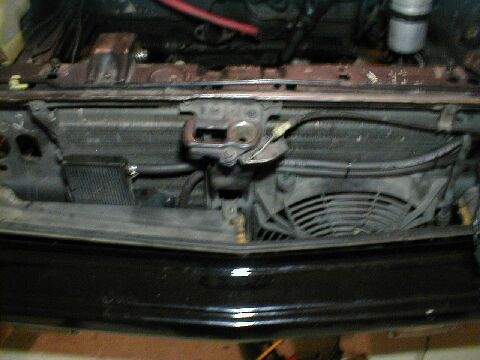

10"
Cooling fan installed and transmission cooler lines re-routed

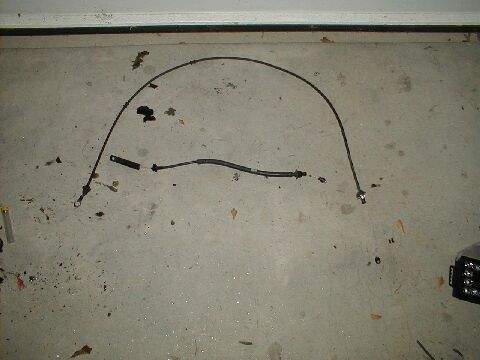

TOP
CABLE: 2.5, 2.8, and 3.1L STOCK Accelerator Cable
BOTTOM
CABLE: 3300/3800 Accelerator Cable
(Courtesy
of 1992 Oldsmobile Ciera Wagon)

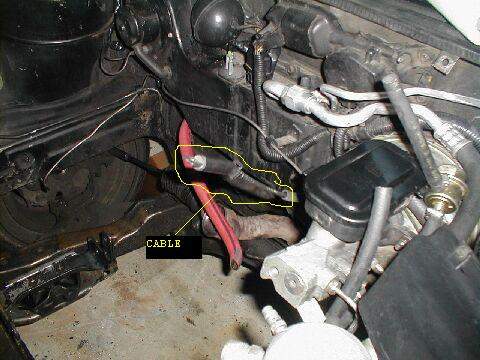

As
short as the cable seems, it lines up PERFECTLY with the Throttle Body
Location
on
the 3800SC Engine
